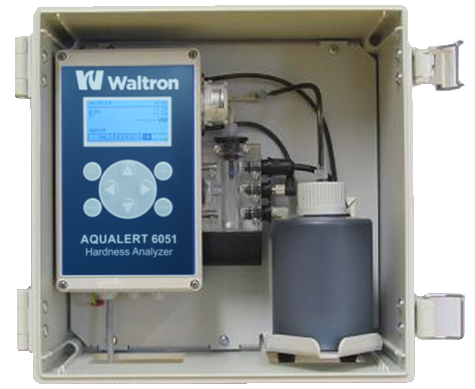

6051 Hardness Analyzer
Range: 0.22-2.14 ppm, 0.36-3.56 ppm, 0.53-5.34 ppm, 1.07-1.068 ppm, 1.60-1.602 ppm, 2.67-26.70 ppm, 5.34-53.40 ppm, 10.68-106.8 ppm, 16.02-160.2 ppm, 26.70-267.0 ppm, 53.40-534.0 ppm
The Waltron 6051 Total Hardness Analyzer offers the best means to control ppm-level hardness in simple design, efficient operation, and low cost. The 6051 uses automatic titrimetric technology to detect hardness levels in water as total or carbonate hardness, expressed in °dH, °f, mg/l, or ppm. The 6051 has a straightforward and intuitive operator interface with quick and easy maintenance procedures. A wide array of reagent formulations allows for flexibility in choosing the appropriate range. Automate your hardness measuring system for affordable mistake-proof reliability and greatly enhanced measurement resolution.
Easy to use fully automatic operation
Wide-Range analysis
Hassle free maintenance
Long lasting reagent
Automatic graphical display of last 100 results
Compact design
4 Relay outputs
4-20mA output signal
Removable SD card
No calibration necessary
Accurate and reliable results
PERFORMANCE
Ranges (Reagent Dependent)
0.22-2.14 ppm, 0.36-3.56 ppm, 0.53-5.34 ppm, 1.07-1.068 ppm, 1.60-1.602 ppm, 2.67-26.70 ppm, 5.34-53.40 ppm, 10.68-106.8 ppm, 16.02-160.2 ppm, 26.70-267.0 ppm, 53.40-534.0 ppm
Accuracy
+/– 5% of the measuring range
Reproducibility
+/– 2.5% of the measuring range
Sampling Frequency (Cycle Time)
Approximately 3 minutes, depending on hardness of sample
Required Maintenance
Replenishment of reagent dependent on cycle time and range (1-6 months); Yearly replace tubing
Reagent Consumption (approximate)
One 500ml bottle per month, depending on hardness of sample
Sensor Classification
Titrimetric
Ambient Temperature Range
1-40°C (34-104°F)
Humidity
20-90% RF (without ice or condensation)
Unit Dimensions
Height=23.6”(60 cm), Width=15”(38 cm), Depth=8.3”(21 cm)
Positioning and Installation Details
Compact enclosure
Weight
2.1 kg (4.6 lbs.) without enclosure
Degree of Protection
Open wall mounting IP43; Enclosure IP54
Alarms
2 or 4 configurable alarm relays
Power Supply (on request)
85-264 VAC, 47-63 Hz
Certification (on request)
Meets low voltage and low electromagnetic compatibility directives
SAMPLE DELIVERY OPERATING CONDITIONS
Temperature Range
5-40º C (41-104º F)
Inlet Pressure Range
0.5-5 bar (recommend 1-2 bar)
Outlet Sample
Atmospheric, waste tubing O.D. 6mm
PH
4-10
Sample Interferences
Iron <3ppm; copper <0.2ppm; aluminum <0.1ppm; manganese<0.2ppm; acid capacity ks4.3>
Sample Conditioning Requirements
Clear, colorless, free of solid particles, free of gas bubbles
Materials in Contact with Sample
Stainless Steel, ABS, PVC
SIGNAL OUTPUTS
Analog Outputs
0/4-20mA for measured signal
4 Relay Output
Max 250 VAC / V DC 4A; potential free NC/NO
