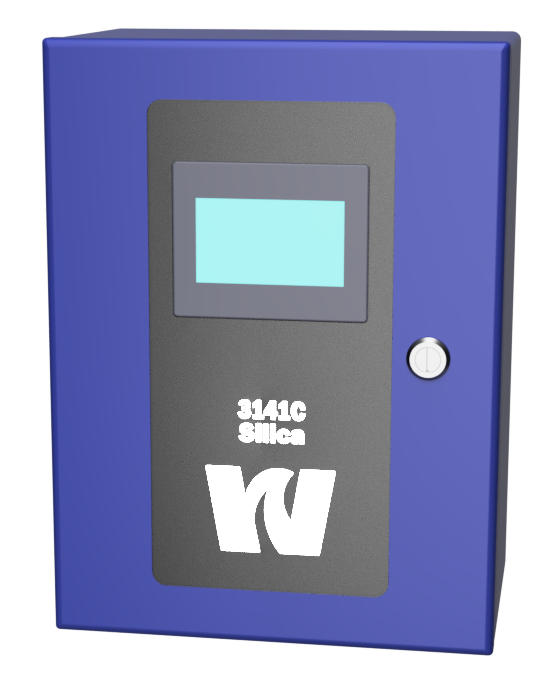

3141C Compact Silica Analyzer
Reliable Silica Monitoring with Waltron’s Compact and Easy-to-Maintain Analyzer
The Waltron 3141C Compact Silica Analyzer delivers reliable, easy-to-maintain online analysis of dissolved silica in ultrapure water. It features a color touchscreen interface and a fast-loop reservoir for accurate, independent measurement. It is ideal for use in make-up water, condensate, boiler feedwater, and steam applications and offers a low total cost of ownership.
Key Features
Specifications
Documents
Key Features
- Accurate and wide-range analysis (PPB and PPM)
- Grab Sample Option
- Color touchscreen display
- Pre-assembled pump heads for quick and easy changeouts
- Automatic start/stop based on sample flow detection
- Automatic calibration and validation
- Internal datalogger with internal USB
- Internal fast loop reservioir
- Available as single- or dual-channel
Specifications
- Parameter: Silica
- Technology: Colorimetric
- Range(s): 0-1000ppb, 0-5ppm, 0-150ppm
- Accuracy: ±1ppb or ±2% of reading (whichever is greater)
- Sample Streams: 1 to 2
- Response Time: ~12 minutes, batch process
- Cycle Time: 20 minutes, adjustable
- Analog Outputs: 4-20mA (galvanic isolator option) or 0-5V
- Alarms: 2 or 4 configurable alarms (result, loss of sample, fault)
- Calibration Method: Automatic
- Calibration Frequency: One reading every 20 mins, adjustable
- Ambient Conditions: 50-115°F / 10-45°C
- Sample Temperature: 40-130°F / 5-55°C
- Sample Flow/Pressure: 100-500ml/min; atmospheric
Mechanical
- Power: 110-220VAC
- IP Rating: IP65/NEMA4X
- Dimensions: 16x12x8 in (64x30x20cm)
- Weight: 10kg (22 lbs)
- Mounting: Panel/Wall
- Sample Connection: 1/4″ (0.635cm) OD Swagelok
- Maintenance Cycle: Monthly reagents, quarterly pump head (with tubing) swap out

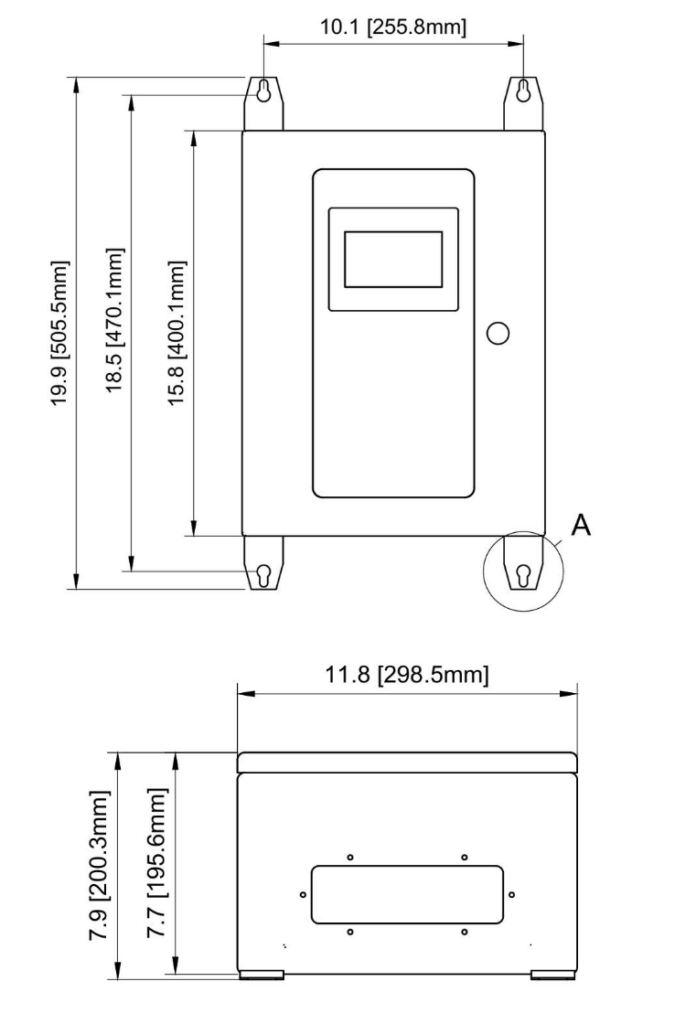

General Arrangement Drawing
