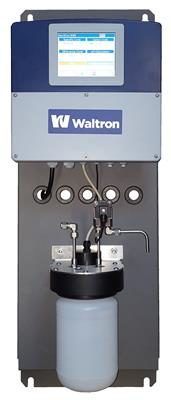

9095 MultiCon Analyzer

Range: 0-9.999µS/cm

Range: 0-99.9µS/cm


The Waltron 9095 Multi-Conductivity Analyzer continuously measures conductivity before and after cation exchange, while automatically calculating the pH value of the sample and alkalizing reagent concentration of feed-water, steam, and condensate. An enhanced color touchscreen user interface makes the 9095 easy and intuitive to operate and configure. This combination-measurement technology saves panel space and delivers the most accurate specific and cation conductivity measurements with simple maintenance and consumables.

 Highly accurate calculated pH


 Alarm for cation resin exhaustion


 Easy to replace cation column


 Easy to mount stainless steel panel


 One transmitter for two conductivity values and pH


 Dual channel option (9094C)

PERFORMANCE

Range

0-10µS/cm, 0-100µS/cm


Accuracy

< 0.6% of the measuring range


Reagent Consumption (approximate)

Cation Resin (pre-rinsed); replace cartridge every two months


Sensor Classification

Cationic exchange and conductivity sensors


Data Storage

Extract via USB 2.0 (optional)


Power Supply

AC 110 to 240 V +10 / -15%; 48 to 63 Hz or AC/DC 20 to 30 V; 48 t0 63 Hz




OPERATING CONDITIONS

Sample Temperature Range

32 – 122° F (0 – 50 °C)


Ambient Temperature Range

32 – 140° F (0 – 60 °C)


Inlet Sample Flowrate

.031 – .044 GPM (7-10L/h), 6mm Swagelok


Inlet Sample Pressure

Maximum of 145 psig (10 bar)


Outlet Sample

Atmospheric




SIGNAL OUTPUTS

Analog Outputs

5 x 0/4 – 20 mA for measured signals


Alarms

General Alarm, Resin Exhausted Alarm


Optional

RS422/RS485




MECHANICAL

Construction

Transmitter – high strength ABS, IP67

Wet section – stainless steel or PVC


Dimensions

14.5 x 33.5 x 10″ (368 x 851 x 254mm)


Mounting

Wall mount or Panel mount


Finish

Corrosion resistant
